Explore Edge Craft RAG¶

ChatQnA with LLM Example in UI¶

Create Pipeline¶

To create a default pipeline, you need to click the Create Pipeline button in the Pipeline Setting page. create_pipeline

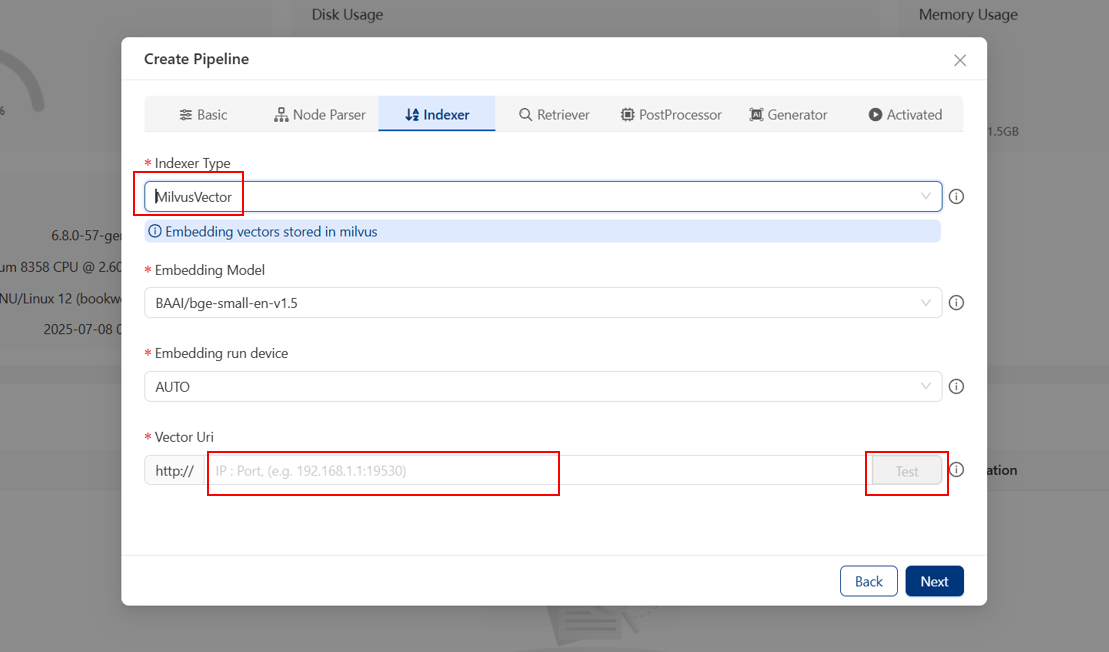

Then follow the pipeline create guide in UI to set your pipeline, please note that in Indexer Type you can set MilvusVector as indexer(Please make sure Milvus is enabled before set MilvusVector as indexer, you can refer to Enable Milvus).
if choosing MilvusVector, you need to verify vector uri first, please input ‘Your_IP:milvus_port’ then click Test button. Note that milvus_port is 19530 milvus

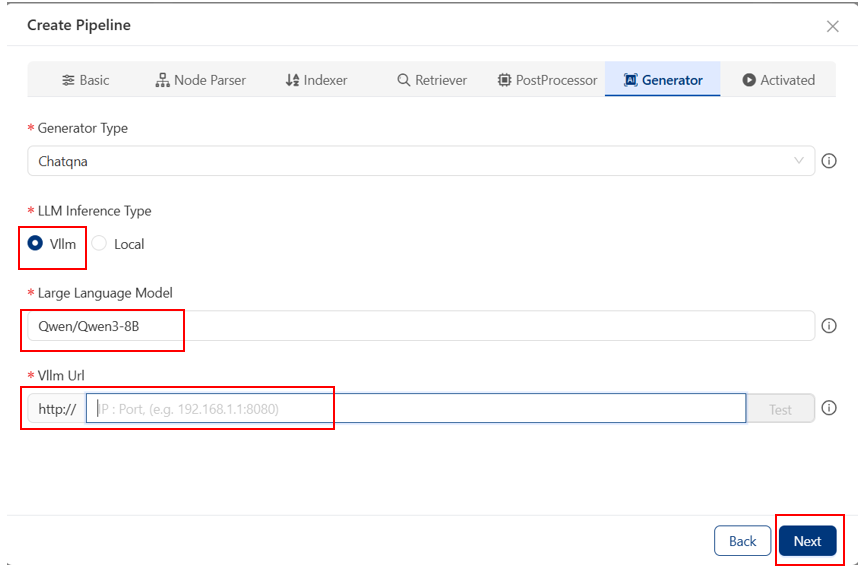

Then, In Generator config page, choose LLM Inference Type to Vllm.
In Large Language Model field, input your LLM_MODEL name, e.g. ‘Qwen/Qwen3-8B’.
In Vllm Url field, you need to input ‘IP:vllm_port’ then click Test button. Note that defaultly vllm_port is ‘8086’
(Note if the test fails, it might be because vLLM service not ready yet, you can wait for 30s and try again) generator

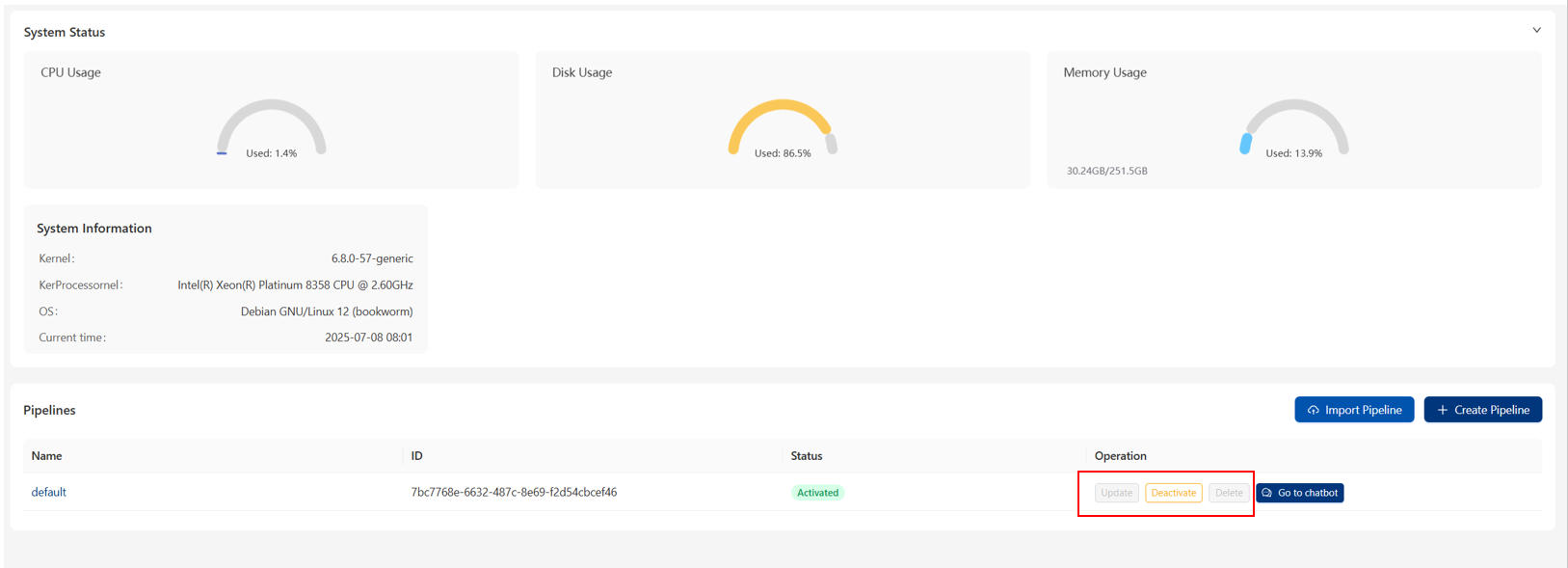

You can also create multiple pipelines or update/remove existing pipelines through the Operation field, but please note that active pipelines cannot be updated. pipeline_operation

Upload files & ChatQnA¶

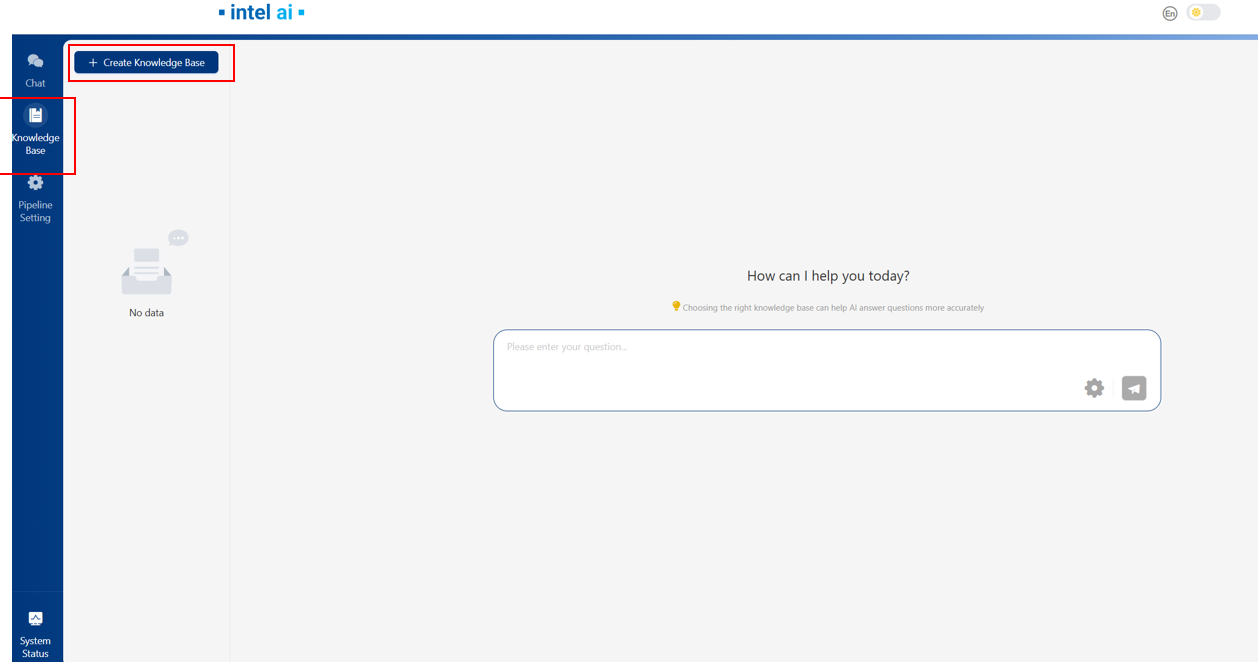

After the pipeline creation, you can go to Knowledge Base page and click Create Knowledge Base button to create your knowledge base. upload_data

When creating Knowledge base, please choose Activated option, since only the files in activated Knowledge base can be retrieved in ChatQnA upload_data

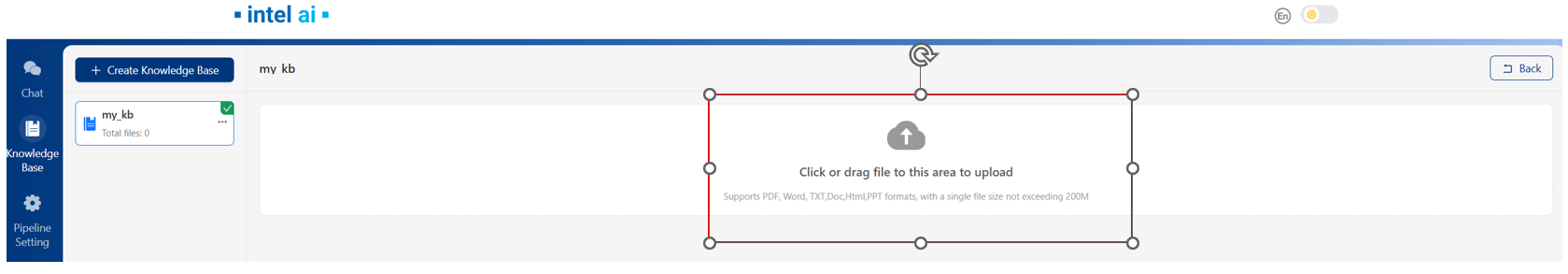

After knowledge base creation, you can upload the documents for retrieval. upload_data

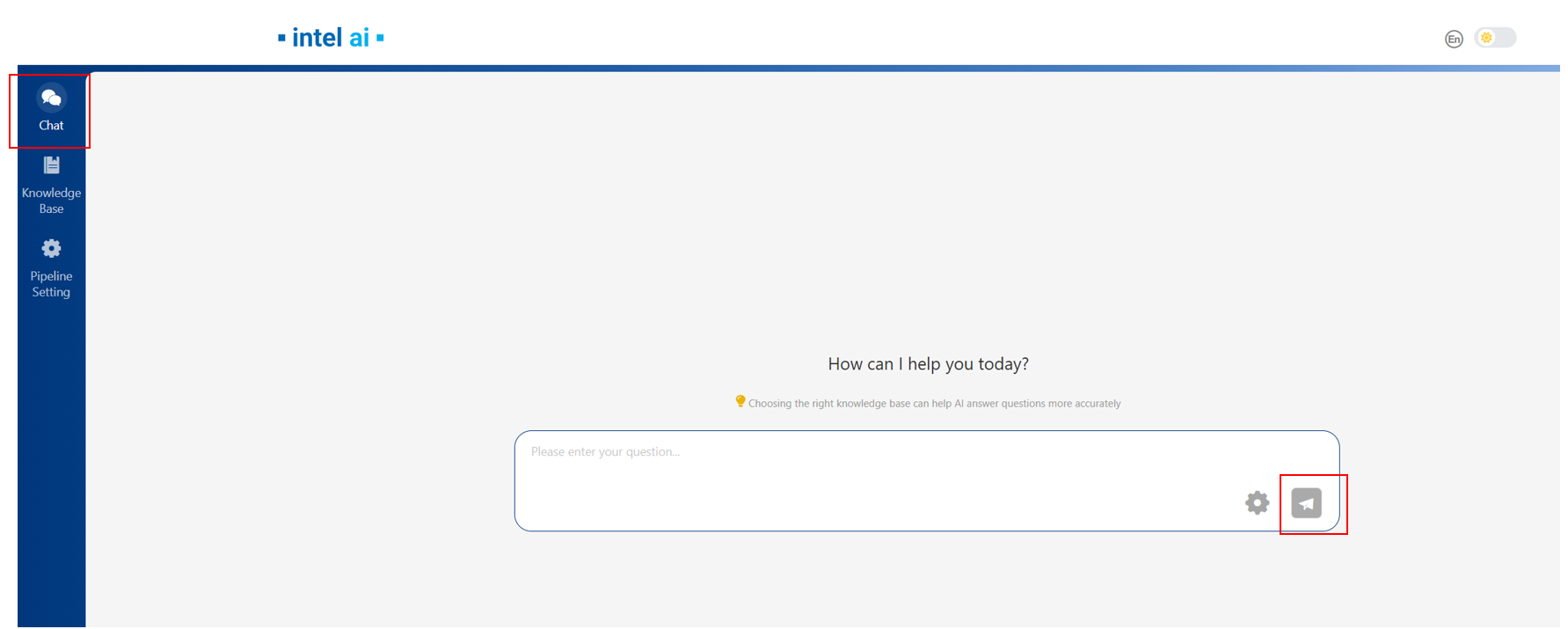

Then, you can submit messages in the chat box in Chat page. chat_with_rag

ChatQnA with Kbadmin in UI¶

Kbadmin Pipeline¶

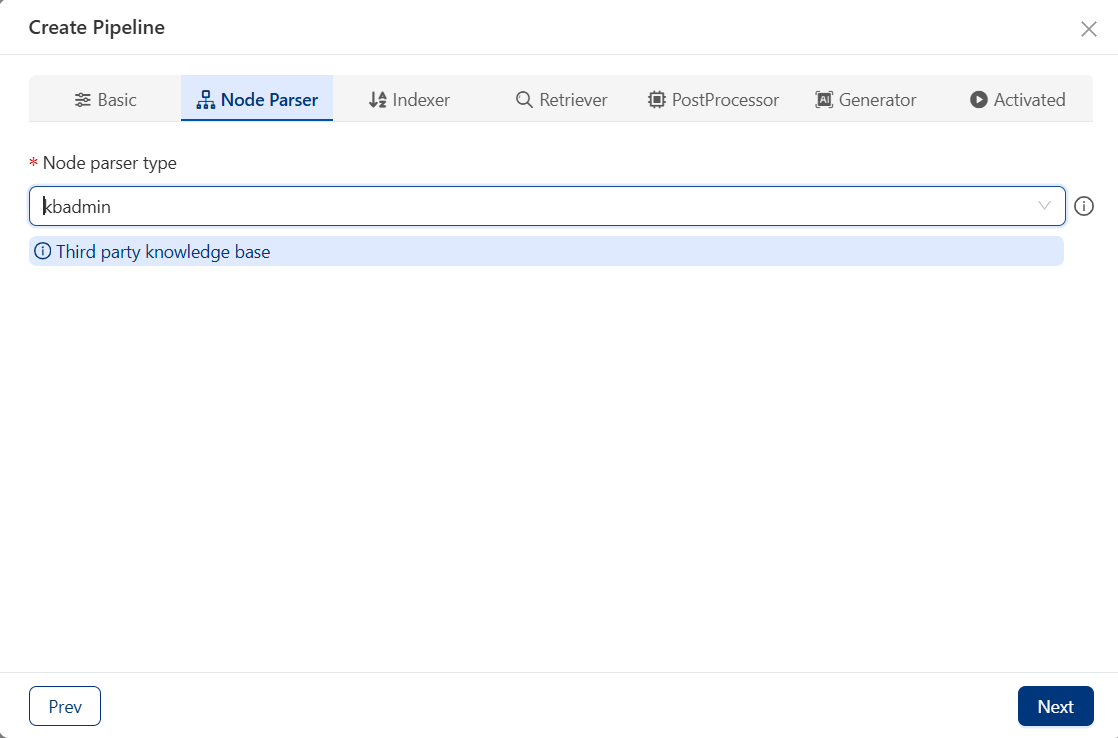

In the Node Parser page, select ‘kbadmin’ as node parser. kbadmin_node_parser

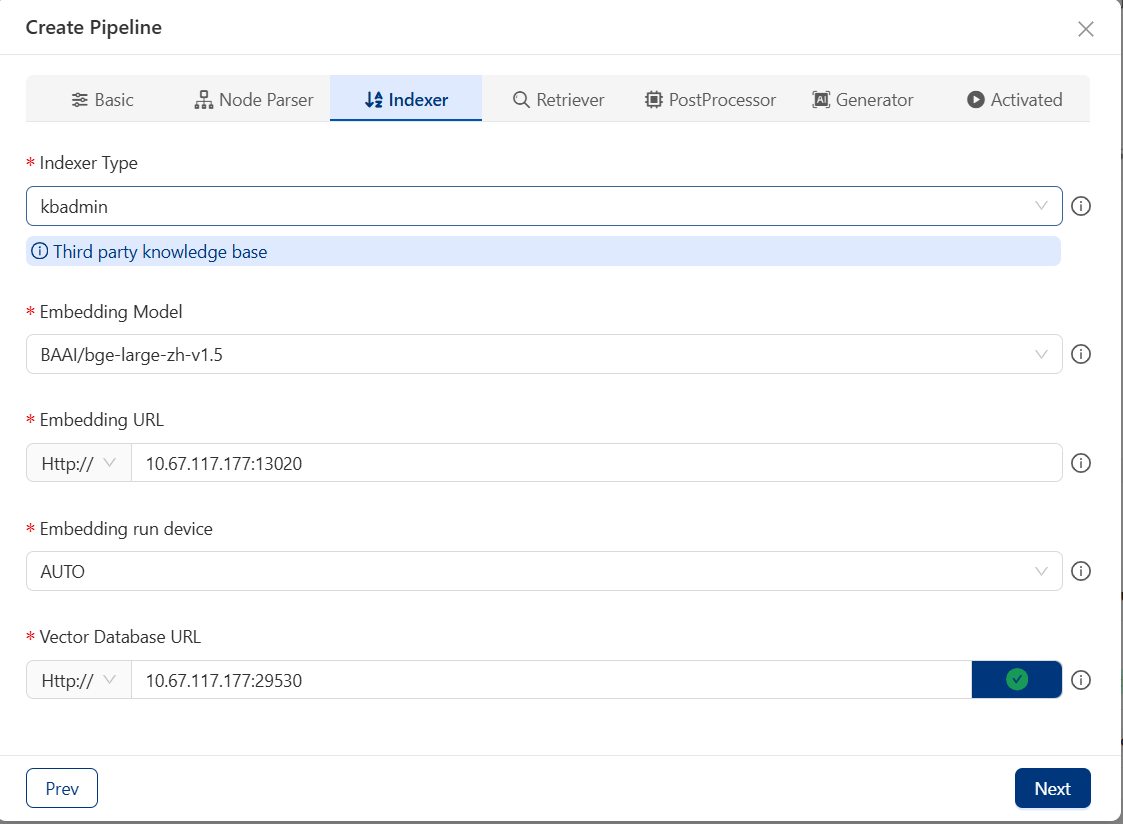

In the Indexer page, input embedding and vector DB information, please note the embedding service port is 13020; the vector DB port is 29530. kbadmin_indexer

Upload files & ChatQnA¶

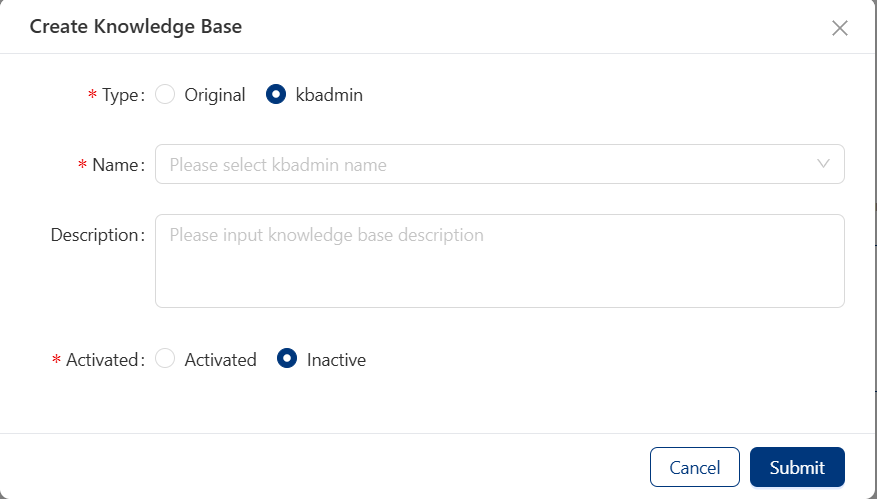

After the pipeline creation, you can go to Knowledge Base page and click Create Knowledge Base button to create your knowledge base.
Please select ‘kbadmin’ in Typeand select kb name from the kbs you created in kbadmin UI page.

upload_data

Then, you can submit messages in the chat box in Chat page. chat_with_rag
