Example Arbitration Post-Hearing Assistant deployments on Intel Xeon Processor

This document outlines the deployment process for a Arbitration Post-Hearing Assistant application utilizing OPEA components on an Intel Xeon server.

This example includes the following sections:

arb-post-hearing-assistant Quick Start Deployment

This section describes how to quickly deploy and test the Arbitration Post-Hearing Assistant service manually on an Intel Xeon platform. The basic steps are:

Access the Code and Set Up Environment

Clone the GenAIExample repository and access the Arbitration Post-Hearing Assistant Intel Xeon platform Docker Compose files and supporting scripts:

git clone https://github.com/opea-project/GenAIExamples.git
cd GenAIExamples/ArbPostHearingAssistant/docker_compose
source intel/set_env.sh

NOTE: by default vLLM does “warmup” at start, to optimize its performance for the specified model and the underlying platform, which can take long time. For development (and e.g. autoscaling) it can be skipped with export VLLM_SKIP_WARMUP=true.

NOTE: If any port on your local machine is occupied (like 9000/8008/8888, etc.), modify it in set_env.sh, then run source set_env.sh again.

Generate a HuggingFace Access Token

Some HuggingFace resources, such as some models, are only accessible if you have an access token. If you do not already have a HuggingFace access token, you can create one by first creating an account by following the steps provided at HuggingFace and then generating a user access token.

Deploy the Services Using Docker Compose

To deploy the Arbitration Post-Hearing Assistant services, execute the docker compose up command with the appropriate arguments. For a default deployment, execute:

cd intel/cpu/xeon/
docker compose up -d

Note: developers should build docker image from source when:

  • Developing off the git main branch (as the container’s ports in the repo may be different from the published docker image).

  • Unable to download the docker image.

  • Use a specific version of Docker image.

Please refer to the table below to build different microservices from source:

Microservice

Deployment Guide

vLLM

vLLM build guide

llm-arb-post-hearing-assistant

LLM-ArbPostHearingAssistant build guide

MegaService

MegaService build guide

UI

Basic UI build guide

Check the Deployment Status

After running docker compose, to check if all the containers launched via docker compose have started:

docker ps -a

For the default deployment, the following 4 containers should be running:

CONTAINER ID   IMAGE                                                           COMMAND                  CREATED       STATUS                 PORTS                                         NAMES
24bd78300413   opea/arb-post-hearing-assistant-gradio-ui:latest                "python arb_post_hea…"   2 hours ago   Up 2 hours             0.0.0.0:5173->5173/tcp, [::]:5173->5173/tcp   arb-post-hearing-assistant-xeon-ui-server
59e60c954e26   opea/arb-post-hearing-assistant:latest                          "python arb_post_hea…"   2 hours ago   Up 2 hours             0.0.0.0:8888->8888/tcp, [::]:8888->8888/tcp   arb-post-hearing-assistant-xeon-backend-server
32afc12de996   opea/llm-arb-post-hearing-assistant:latest                      "python comps/arb_po…"   2 hours ago   Up 2 hours             0.0.0.0:9000->9000/tcp, [::]:9000->9000/tcp   arb-post-hearing-assistant-xeon-llm-server
c8e539360aff   ghcr.io/huggingface/text-generation-inference:2.4.0-intel-cpu   "text-generation-lau…"   2 hours ago   Up 2 hours (healthy)   0.0.0.0:8008->80/tcp, [::]:8008->80/tcp       arb-post-hearing-assistant-xeon-tgi-server

Test the Pipeline

Once the Arbitration Post-Hearing Assistant services are running, test the pipeline using the following command:

curl -X POST http://${host_ip}:8888/v1/arb-post-hearing \
        -H "Content-Type: application/json" \
        -d '{"type": "text", [10:00 AM] Arbitrator Hon. Rebecca Lawson: Good morning. This hearing is now in session for Case No. ARB/2025/0917. Lets begin with appearances. [10:01 AM] Attorney Michael Grant for Mr. Jonathan Reed: Good morning Your Honor. I represent the claimant Mr. Jonathan Reed. [10:01 AM] Attorney Lisa Chen for Ms. Rachel Morgan: Good morning. I represent the respondent Ms. Rachel Morgan. [10:03 AM] Arbitrator Hon. Rebecca Lawson: Thank you. Lets proceed with Mr. Reeds opening statement. [10:04 AM] Attorney Michael Grant: Ms. Morgan failed to deliver services as per the agreement dated March 15 2023. We have submitted relevant documentation including email correspondence and payment records. The delay caused substantial financial harm to our client. [10:15 AM] Attorney Lisa Chen: We deny any breach of contract. The delays were due to regulatory issues outside our control. Furthermore Mr. Reed did not provide timely approvals which contributed to the delay. [10:30 AM] Arbitrator Hon. Rebecca Lawson: Lets turn to Clause Z of the agreement. Id like both parties to submit written briefs addressing the applicability of the force majeure clause and the timeline of approvals. [11:00 AM] Attorney Michael Grant: Understood. Well submit by the deadline. [11:01 AM] Attorney Lisa Chen: Agreed. [11:02 AM] Arbitrator Hon. Rebecca Lawson: The next hearing is scheduled for October 22 2025 at 1030 AM Eastern Time. Please ensure your witnesses are available for cross examination. [4:45 PM] Arbitrator Hon. Rebecca Lawson: This session is adjourned. Thank you everyone.","max_tokens":2000,"language":"en"}'

Note The value of host_ip was set using the set_env.sh script and can be found in the .env file.

Cleanup the Deployment

To stop the containers associated with the deployment, execute the following command:

docker compose -f compose.yaml down

All the Arbitration Post-Hearing Assistant containers will be stopped and then removed on completion of the “down” command.

arb-post-hearing-assistant Docker Compose Files

In the context of deploying a arb-post-hearing-assistant pipeline on an Intel® Xeon® platform, we can pick and choose different large language model serving frameworks. The table below outlines the various configurations that are available as part of the application.

File

Description

compose.yaml

Default compose file using vllm as serving framework

compose_tgi.yaml

The LLM serving framework is TGI. All other configurations remain the same as default

compose_remote.yaml

Uses remote inference endpoints for LLMs. All other configurations are same as default

Running LLM models with remote endpoints

When models are deployed on a remote server, a base URL and an API key are required to access them. To set up a remote server and acquire the base URL and API key, refer to Intel® AI for Enterprise Inference offerings.

Set the following environment variables.

  • REMOTE_ENDPOINT is the HTTPS endpoint of the remote server with the model of choice (i.e. https://api.example.com). Note: If the API for the models does not use LiteLLM, the second part of the model card needs to be appended to the URL. For example, set REMOTE_ENDPOINT to https://api.example.com/Llama-3.3-70B-Instruct if the model card is meta-llama/Llama-3.3-70B-Instruct.

  • API_KEY is the access token or key to access the model(s) on the server.

  • LLM_MODEL_ID is the model card which may need to be overwritten depending on what it is set to set_env.sh.

export REMOTE_ENDPOINT=<https-endpoint-of-remote-server>
export API_KEY=<your-api-key>
export LLM_MODEL_ID=<model-card>

After setting these environment variables, run docker compose with compose_remote.yaml:

docker compose -f compose_remote.yaml up -d

arb-post-hearing-assistant Detailed Usage

There are also some customized usage.

Query with text

# form input. Use English mode (default).
curl http://${host_ip}:8888/v1/arb-post-hearing \
      -H "Content-Type: application/json" \
      -F "type=text" \
      -F "messages=[10:00 AM] Arbitrator Hon. Rebecca Lawson: Good morning. This hearing is now in session for Case No. ARB/2025/0917. Lets begin with appearances. [10:01 AM] Attorney Michael Grant for Mr. Jonathan Reed: Good morning Your Honor. I represent the claimant Mr. Jonathan Reed. [10:01 AM] Attorney Lisa Chen for Ms. Rachel Morgan: Good morning. I represent the respondent Ms. Rachel Morgan. [10:03 AM] Arbitrator Hon. Rebecca Lawson: Thank you. Lets proceed with Mr. Reeds opening statement. [10:04 AM] Attorney Michael Grant: Ms. Morgan failed to deliver services as per the agreement dated March 15 2023. We have submitted relevant documentation including email correspondence and payment records. The delay caused substantial financial harm to our client. [10:15 AM] Attorney Lisa Chen: We deny any breach of contract. The delays were due to regulatory issues outside our control. Furthermore Mr. Reed did not provide timely approvals which contributed to the delay. [10:30 AM] Arbitrator Hon. Rebecca Lawson: Lets turn to Clause Z of the agreement. Id like both parties to submit written briefs addressing the applicability of the force majeure clause and the timeline of approvals. [11:00 AM] Attorney Michael Grant: Understood. Well submit by the deadline. [11:01 AM] Attorney Lisa Chen: Agreed. [11:02 AM] Arbitrator Hon. Rebecca Lawson: The next hearing is scheduled for October 22 2025 at 1030 AM Eastern Time. Please ensure your witnesses are available for cross examination. [4:45 PM] Arbitrator Hon. Rebecca Lawson: This session is adjourned. Thank you everyone." \
      -F "max_tokens=2000" \
      -F "language=en"

## Launch the UI

### Gradio UI

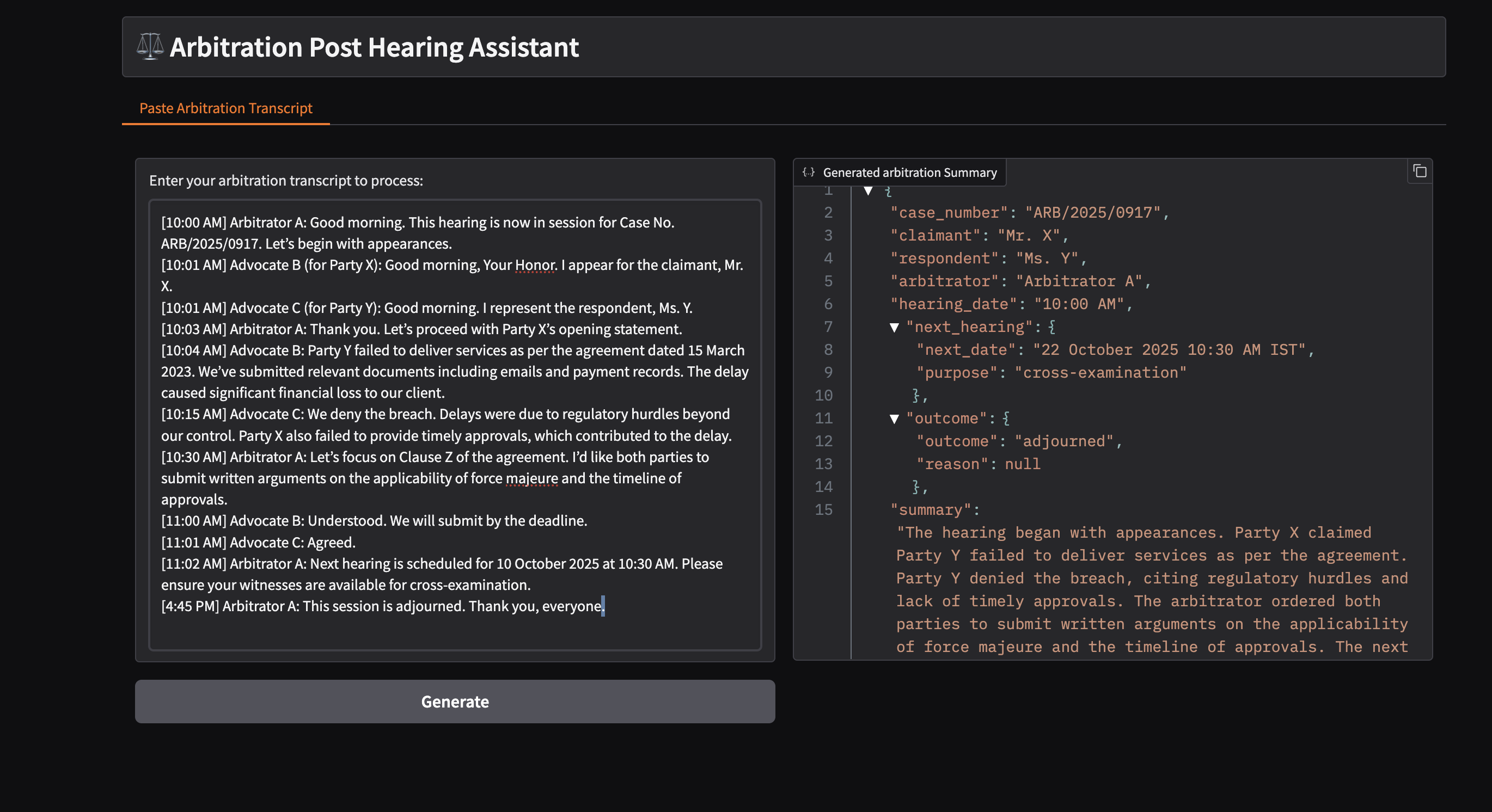

Open this URL `http://{host_ip}:5173` in your browser to access the Gradio based frontend.
![project-screenshot](../../../../assets/img/arbritation_post_hearing_ui_gradio_text.png)

### Profile Microservices

To further analyze MicroService Performance, users could follow the instructions to profile MicroServices.

#### 1. vLLM backend Service

Users could follow previous section to testing vLLM microservice or Arbitration Post-Hearing Assistant MegaService. By default, vLLM profiling is not enabled. Users could start and stop profiling by following commands.

## Conclusion

This guide should enable developer to deploy the default configuration or any of the other compose yaml files for different configurations. It also highlights the configurable parameters that can be set before deployment.
